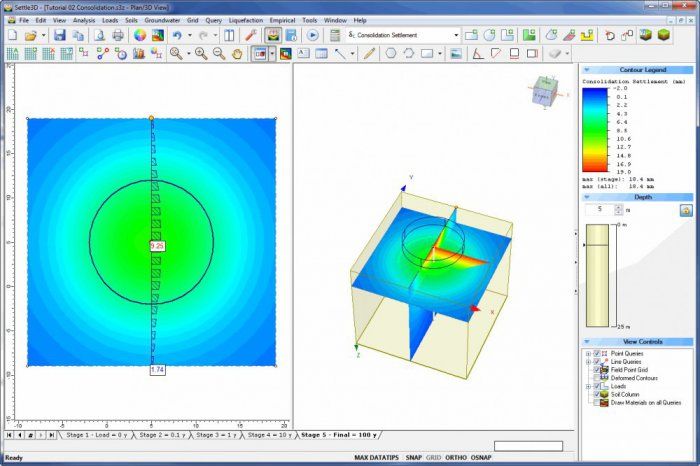

Settle3D screenshot
SOFTWARE :Settle3D
DEVELOPER :Rocscience
VERSION :5.0
PLATFORM :Windows
FILE SIZE :287.87 MB
LICENSE :Trial
DOWNLOADS :UserDownloads:2152
Settle3D Description

Settle3D is a 3-dimensional program for the analysis of vertical consolidation and settlement under foundations, embankments and surface loads. The program combines the simplicity of one-dimensional analysis with the power and visualization capabilities of more sophisticated three-dimensional programs.

You can quickly create complex soil profiles and loading conditions, and view results in 3-dimensions. Modeling can be staged, and time-dependent consolidation analysis can be performed including primary and secondary consolidation (creep) at user defined time intervals. A variety of linear and non-linear material types can be modeled. Groundwater elevation can be staged and horizontal and vertical drainage conditions can be specified.

Circular, rectangular or polygonal load shapes can be defined with uniform or variable load magnitudes, and flexible or rigid foundations. Loading can be staged and applied at any depth (e. g. to simulate piles or raft foundations). Excavations can be defined and loads applied within excavated areas. A special embankment designer allows you to easily define multi-stage layered embankments. Back analysis options allow you to determine the pre-load fill height or time required to achieve a given settlement.

Settlement, stress and pore pressure are computed throughout the 3-dimensional volume, and results can be contoured along any horizontal or vertical plane, or plotted along any line. Settlement deformation can be viewed in 3-dimensions, magnified by a user-defined scale factor. Data presentation is highly interactive, and contours and graphs are updated in real time as you change the data type, depth or location. Results can be exported to Excel with a single mouse click.

* Settle3D download link provides trial version of the software.
