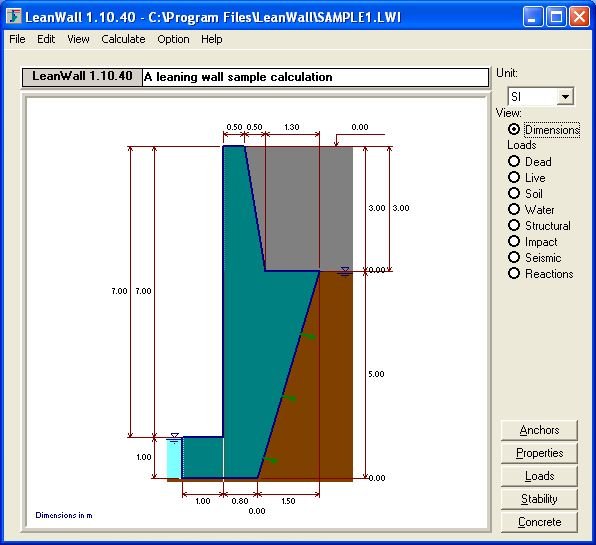

LeanWall screenshot
SOFTWARE :LeanWall
VERSION :1.10
PLATFORM :Windows
FILE SIZE :2.23 MB
LICENSE :Trial
DOWNLOADS :UserDownloads:22
LeanWall Description

LeanWall is a software mainly designed for the purpose of designing a concrete or masonry leaning wall. The wall may lean on rock or soil and may retain soil or other granular material. It analyses the stability of the wall based on the loads and the resulting base pressure, sliding, anchor stresses and eccentricities. Loads applied on the wall may consist of self weight, soil pressure, water pressure, live and seismic loads. If the wall is a reinforced concrete structure, the software also supports the reinforcement design. In addition, a soil pressure calculator is also provided.

LeanWall is designed to be an easy application, on-screen trial-and-error method and quick solution finding of the design. A familiar designer can design the wall within minutes. Complete outputs can be viewed on screen or printed.

* LeanWall download link provides trial version of the software.
