> > ASDIP Steel

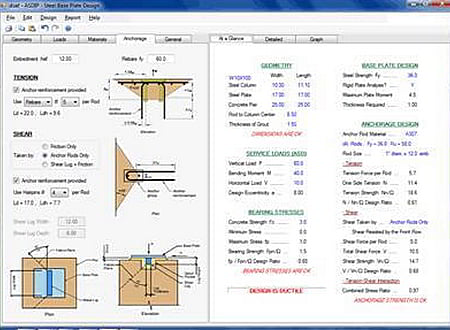

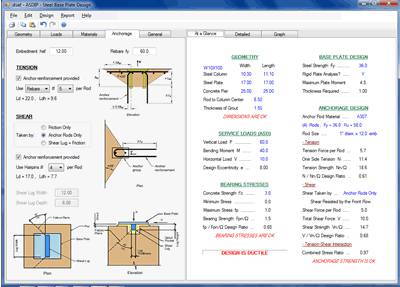

ASDIP Steel screenshot
SOFTWARE :ASDIP Steel
VERSION :3.7.7
PLATFORM :Windows
FILE SIZE :3.07 MB
LICENSE :Trial
DOWNLOADS :UserDownloads:897
ASDIP Steel Description

ASDIP Steel is a suite of modules specifically dedicated to the design of structural steel members, based on the latest AISC specifications (AISC 360), that greatly simplifies the time-consuming calculations in any structural engineering office.

ASDIP Steel includes the design of the following three components

  • Steel Base Plates - Design of column steel base plates under any combination of vertical load and bending moment, including axial tension. The module designs the anchorage per the latest provisions of the ACI 318 Appendix D.
  • Steel Columns - Design of steel columns subjected to axial load, shear and biaxial bending, per the AISC ASD/LRFD method. Either second order or amplified first order analyses may be modeled.
  • Steel and Composite Beams - Design of steel or composite beams subjected to shear and bending, based on the AISC ASD/LRFD method. Limiting deflections and camber can be specified.

Trial Limitations:

  • Report | Print disabled
  • File | Save disabled
  • 15-day evaluation period

* ASDIP Steel download link provides trial version of the software.
