· · csJoint

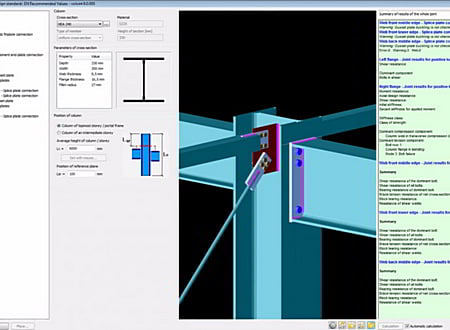

csJoint screenshot
Software :csJoint
Version :8.0
Last Update :3 December 2014
Platform:Windows
File Size :30.73 MB
License :Trial
Downloads :UserDownloads:359
csJoint Description

csJoint connection design software can be run as a stand-alone application and proved to be an efficient tool for structural connection design.

Main features:

  • Easy to use graphical user interface
  • Huge range of connection types
  • Automatic calculation - no need to press recalculate after any change
  • Bolt layout suggestion
  • Automatic weld size optimalization
  • User configuration file for connection customization and quick definition
  • Poweful documentation
  • Export to Tekla Structures

A great range of different joint types can be created easily applying several special connection elements, the design tools covers practically the whole joint standard Eurocode 3 Part 1-8.

A joint can be defined alone or based on the global model by the automatic joint identification tool. A prepared joint can be placed several parts of the global model to make the joint integral part of it. A placed joint is always automatically rechecked based on the current analysis results, and the connection stiffness is also updated modifying the global model consequently.

* csJoint download link provides trial version of the software.
* Keywords: steel connection design, steel joint design, eurocode 3, ec 3, beam to column joint, hollow section joint, end plate connection, semi-rigid joint, tekla, joint, stiffness, bolt layout
