CESDb > Geotechnical Engineering > Surcharge Earth Pressure

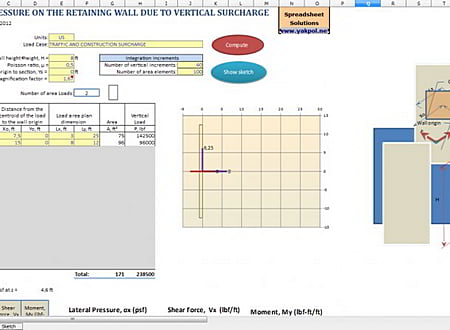

Surcharge Earth Pressure screenshot
SOFTWARE :Surcharge Earth Pressure
DEVELOPER :Yakov Polyakov
VERSION :2012
PLATFORM :Spreadsheet
FILE SIZE :0.43 MB
LICENSE :Freeware
DOWNLOADS :UserDownloads:2146
Surcharge Earth Pressure Description

This spreadsheet computes lateral pressure against retaining wall due to vertical surcharge loads.

The VBA routine replaces area load with a group of closely spaced point loads. The stresses due to individual point loads are calculated using theory of elasticity equations developed by Boussinesq and then integrated. Subsequently, the spreadsheet calculates shear force and bending moment diagrams.

* Surcharge Earth Pressure download link provides freeware version of the software.
