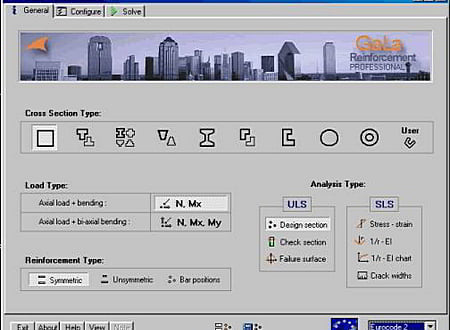

GaLa Reinforcement screenshot
SOFTWARE :GaLa Reinforcement
DEVELOPER :Dr. Ilia Alashki
VERSION :4.1
PLATFORM :Windows
FILE SIZE :1.68 MB
LICENSE :Freeware
DOWNLOADS :UserDownloads:9121
Legacy Software Notice:
Please be advised that GaLa Reinforcement is considered outdated or legacy, and it has reached the end of its support and update cycle. As a result, compatibility issues may arise, and its functionality cannot be guaranteed on modern computer systems.
Program Description

GaLa Reinforcement is a free program, developed as a part of Dr. Ilia Alashki Ph. D. thesis in 1997-2002. It is still one of the most powerful programs in the world for calculation of crack widths and cracked concrete stiffness degradation. The program supports non-linear creep, arbitrary cross section geometry, arbitrary reinforcement layout, axial load with double bending moments, etc.

Concrete Design Codes:

  • ACI 318-99, AASHTO LRFD 1997
  • Eurocode 2
  • BS 8110
  • CSA-A23. 3-94
  • BDS 1988, BDS HT 1989
  • NZS 3101-95
  • DIN 1045
  • UBC 97

Analysis Types:

  1. Design Section: The program calculates the necessary area of reinforcing bars.
  2. Check Section: The program checks the capacity of R/C cross-section with predefined reinforcement.
  3. Failure Surface: The program calculates and draws interaction failure surfaces of R/C cross-section with predefined reinforcement.
  4. Stress-strain: The program calculates the strains and stresses of R/C cross-section with predefined reinforcement.
  5. 1/r - EI: The program calculates the curvatures and stiffnesses of R/C cross-section with predefined reinforcement.
  6. 1/r - EI chart: The program calculates and draws the curvature and stiffness charts of R/C cross-section with predefined reinforcement.
  7. Crack widths: The program calculates the crack width and space between the cracks of R/C cross-section with predefined reinforcement.

* GaLa Reinforcement download link provides freeware version of the software.

Similar Software
BMREINF9 Version:2.0 · Alex Tomanovich
BMREINF9

Analysis Of Beam Reinforcement per Aisc 9th Edition ASD Manual

BMREINF9 is a spreadsheet program written in MS-Excel for the purpose of analysis and code checking of steel members with various types of reinforcement configurations.

Advance Design Version:2021 · Graitec
Advance Design

Analysis and Design of Reinforced Concrete & Steel Structures

Advance Design is a complete integrated analysis / design software dedicated to engineers.

Real3D-Analysis Version:18 · Computations & Graphics, Inc
Real3D-Analysis

Structural Design & Finite Element Analysis

Real3D-Analysis is a powerful frame-finite element analysis and design program built from ground up, with latest technologies from the fields of finite element analysis, numerical computation and computer graphics, shell structures, dynamic analysis, concrete design, truss, frame, plate

VisualAnalysis Version:20.0 · IES
VisualAnalysis

General Analysis & Design

IES VisualAnalysis is an easy to learn software for general-purpose frame and finite-element analysis.

ASTRA Pro Version:24 · Techsoft Engineering Services
ASTRA Pro

Analysis & Design of Bridges with Foundations, Hydrological Analysis, Culverts, Underpasses

The simplest and versatile software for structural analysis and design of bridges with super structures, sub structures, foundations, hydrological analysis, culverts, underpasses.

Comments & Reviews
Matija Zavsek
★★★★★
Please follow the instruction bellow:

RUN UNDER WINDOWS 7, 8, VISTA, 10

1. Right-click on the program-link in the Start Menu.
2. Click on Properties.
3. Click on the tab Compatibility Mode.
4. Choose to start the program in compatibility-mode Windows XP
5. Click on Apply and OK.
Abe kkk
★☆☆☆☆
I have a windows 10 version installed in my computer, and most of the programs in here are windows 7 version. How can i solve these issues because they are not working on windows 10 most software.
Guilherme Geraldino
★★★★★
Does anyone know which Eurocode method the program utilizes? Nominal Stiffness, Nominal Curvature or the general method? I am already using the software, but I can't find this information.
Guilherme Geraldino
★★★★★
Thanks, Grzegorz and Carlos!
Giovanni Bellik
★★★☆☆
Anyone knows how to save the file? I'm able to generate report but I don't know ho to save the file after the run.
Carlos Perez Neyra
★★★★★
Grzegorz thanks a lot! i could run it in compatibility! Well, right click in gala. exe, then properties, compatibility and finally in xp pack 2, thats all.
Grzegorz Czerpak
★★★★★
Run it in compatibility mode choosing "windows xp" and run it as an administrator, it worked for me
Francisco Csacadura
★★★★☆
I have purchased Gala and now with Windows 10 how can I use this program? Regards
Abdirazak Mohamed
★★★☆☆
I have a windows 10 version installed in to my computer, and most of the programs in here are windows 7 version. How can i solve these issues because they are not working on windows 10 most softwares

Submit a review about GaLa Reinforcement software with your social media profile

avatar
Rate This Software

GaLa Reinforcement has been rated 2.8 out of 5 points. A total of 43 votes cast and 9 users reviewed the software.
