Piles are used to provide foundation support to wide ranging structures such as buildings, bridges, wharves, jetties and towers. The GEMS Comprehensive Pile Foundation Analysis software supports analysis of land, bridges and water front piles.
The loading on the pile can be in axial direction (compressive or tensile) and in lateral direction (shear and moment). Application can analyze bored piles - cast-insitu concrete, driven piles - precast concrete, cast-insitu concrete, steel piles of various cross-sections. Various soil types (clay, sand, rock) and soil conditions (ground water table, scour) can be taken into account in the analysis.

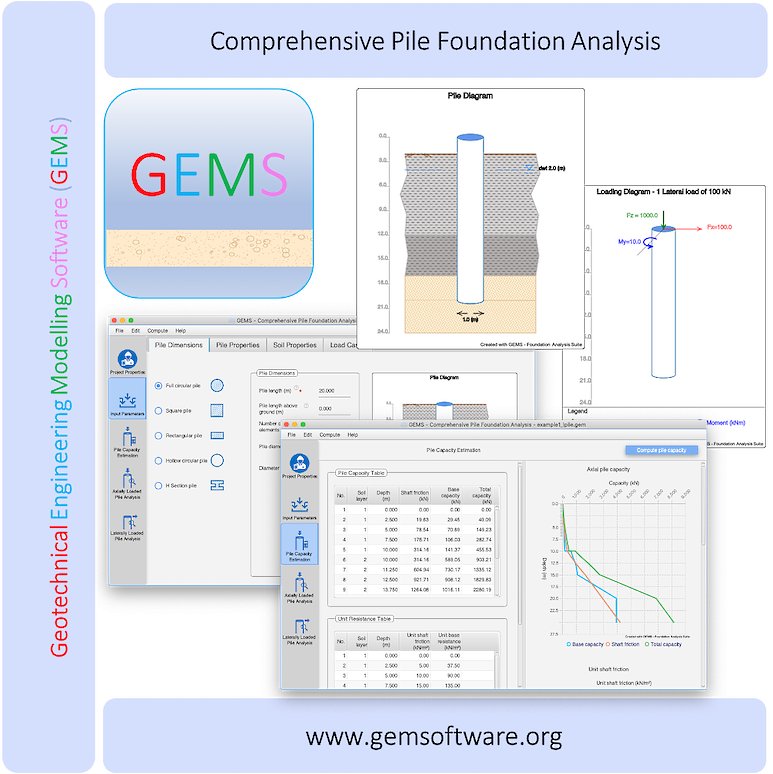

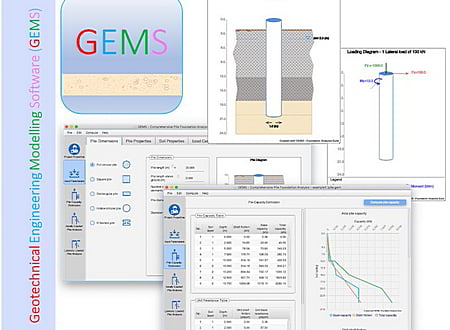

The "Comprehensive Pile Foundation Analysis (Land, Bridge & Waterfront Structures)" software of GEMS provides feature rich & easy-to-use program modules for the all the above analysis. There are three modules available.
- Pile Capacity Estimation
- Axial Pile Analysis
- Lateral Pile Analysis
The pile analysis software is developed keeping in view all the above requirements. This pile analysis software can be used in several ways towards achieving design requirements.
* Comprehensive Pile Foundation download link provides trial version of the software for Windows and Mac.
