· · PCSheetPileWall

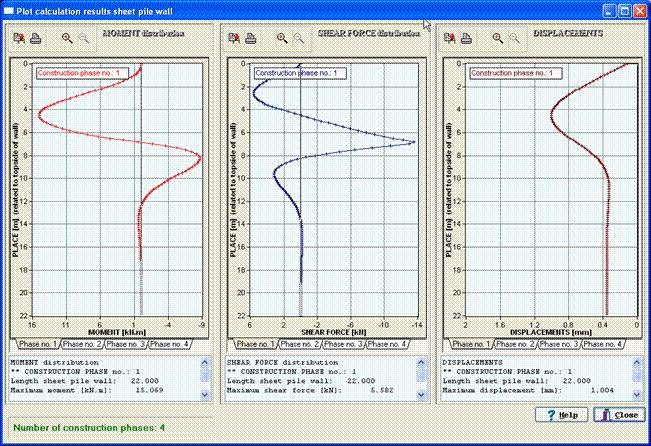

PCSheetPileWall screenshot
Software :PCSheetPileWall
Developer :Gerrit Wolsink
Version :1.36
Last Update :6 February 2015
Platform:Windows
File Size :23.07 MB
License :Freeware
Downloads :UserDownloads:615
PCSheetPileWall Description

With the aid of this program the displacements and the force distribution of a sheet pile wall construction can be calculated.

1. Levels

The program has the capability to locate the top of the sheet pile wall, the place of anchors, soil layers etcetera according two different systems of axes.

2. Sheet pile wall

The sheet pile wall in vertical direction can consists out of more than one section with different values for the moment of inertia and elastic modulus.

3. Surface and (ground) water levels

Dependent of the choice made the surface level can have different shapes per construction phase.

4. Vertical surcharges acting on the surface level

Dependent on the choice for the kind of surface level (see at preceding point 3) different kinds of surcharges acting onto the surface level per construction phase can be entered at the left and/or right side of the sheet pile wall.

5. Horizontal conditions

Per construction phase the following horizontal acting entities can be entered.

6. Soil properties

Dependent on the choice at various setups the strength and stiffness properties can be entered at a different way.

* PCSheetPileWall download link provides freeware version of the software.
* Keywords: sheet pile, moment, shear force, displacement distribution, sheet pile wall, water level, surcharge, soil, diaphragm walls, eurocode 7, en 1997-1
