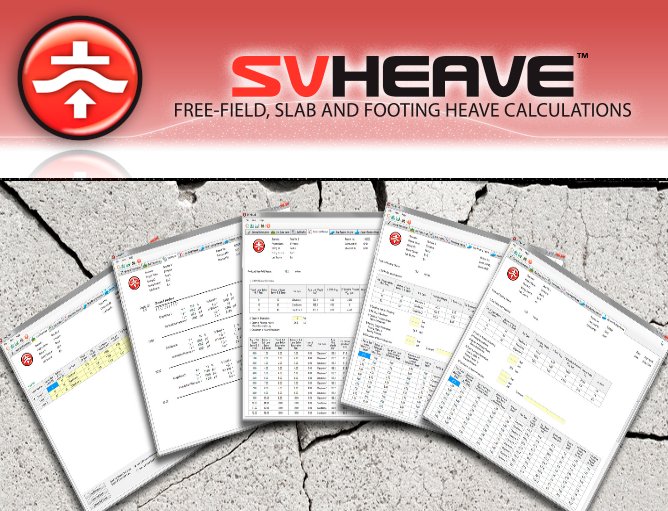

SVHEAVE screenshot
SOFTWARE :SVHEAVE
VERSION :3.22
PLATFORM :Windows
FILE SIZE :41.7 MB
LICENSE :Demo
DOWNLOADS :UserDownloads:260
Legacy Software Notice:
Please be advised that SVHEAVE is considered outdated or legacy, and it has reached the end of its support and update cycle. As a result, compatibility issues may arise, and its functionality cannot be guaranteed on modern computer systems.
Program Description

SVHEAVE has recently been added to our expanding line of world-class software products. SoilVision Systems Ltd. has collaborated on this joint development project with USA-based Engineering Analytics, Inc. to bring this tool to the marketplace.

SVHEAVE is a modeling tool that simplifies the calculation of soil heave for swelling clays. Free-field, slab and footing heave results are easily obtained with the input of soil data and footing design parameters. An easy-to-use graphical user interface allows geotechnical engineers to simulate a wide variety of situations common to industry practice.

SVHEAVE calculates heave based on oedometer-test-based methods. The user chooses the method of heave prediction from the following three methods:

  • Fredlund (1983) Method
  • Nelson and Chao (2014) Method
  • US Army Corps of Engineers (1983) Method

Slab heave is the amount of heave that the ground surface will experience due to wetting of the soils with little to no surface load applied. Pavement represents a similar low-load condition and heave computations are identical to those for slabs. Computations for footing heave are similar to those for slab heave, except that the final net normal stress is equal to the overburden stress plus the stress applied by the footing. SVHEAVE uses the simplified 2:1 method to estimate the increased stress at depth due to the footing load.

The software is designed to allow geotechnical engineers and other soils professionals to easily calculate heave profiles for a variety of soil profiles. Various design strategies on heave (e.g., different depths of overexcavation, different footing loads) can be easily compared.

* SVHEAVE download link provides demo version of the software.
