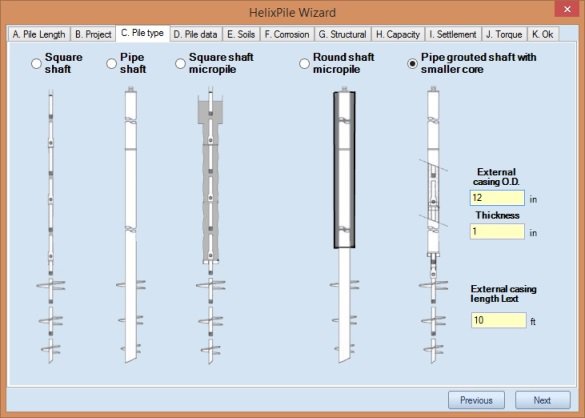

HelixPile screenshot
SOFTWARE :HelixPile
VERSION :2017
PLATFORM :Windows
FILE SIZE :127.75 MB
LICENSE :Trial
DOWNLOADS :UserDownloads:928
HelixPile Description

HelixPile is a user friendly, modern and powerful software program for the design of helical piles. HelixPile allows the user to include an unlimited number of stage conditions and soil profiles. HelixPile incorporates the latest recommendations and reports the controlling design design conditions. Helical piles analyzed with HelixPile include many of the latest recommendations that allow multiple failure modes to be investigated.

HelixPile investigates all types of axial failure modes both in tension and in compression. Reports can be exported in PDF and word. Helix pile supports a wide range of manufactures including RamJack and Magnum piering. HelixPile allows you to estimate the settlement response of a helical pile tested in axial compression.

* HelixPile download link provides trial version of the software.
