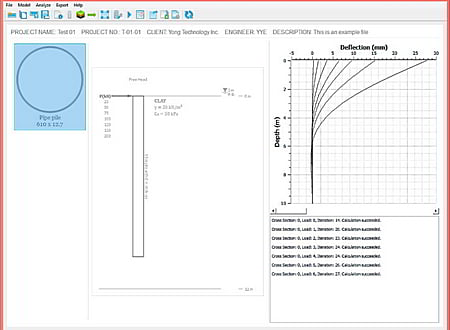

PyPile screenshot
Software :PyPile
Developer :Yong Technology
Version :0.2.2
Date Added :22 July 2015
Platform:Windows
File Size :8.66 MB
License :Freeware
Downloads :UserDownloads:337
PyPile Description

PyPile is a free lateral pile analysis software program based on p-y curves. Pile deflection, bending moment and shear force will be analyzed with different load cases.

PyPile comes with common pile cross sections and custom cross section. Typical soft clay, stiff clay, sand p-y curves (Barry J. Heyer and Lymon C. Reese) and custom p-y curve are included. Free or fixed pile-head boundary conditions are available to users.

Features:

  • Built-in typical soft clay, stiff clay, sand p-y curves.
  • Custom p-y curves, defined by JavaScript or piecewise lines.
  • Multi-layered soil considered.
  • P multiplier to reduce p value in p-y curves.
  • Common pile cross sections and custom cross sections.
  • Pile EI Multiplier to increase or reduce pile bending stiffness.
  • Free and fixed pile head boundary conditions.
  • Lateral force and pile head moment combinations.
  • Results (deflection, moment, shear force, rotation angle) output as excel xlsx file.
  • Soil profile graph ready to be exported and used in report.
  • PyPile is FREE.
* PyPile download link provides freeware version of the software.
* Keywords: lateral pile, pile analysis, p-y curve, pile deflection, bending moment, shear force, pile cross section, soft clay, stiff clay, soil profile
