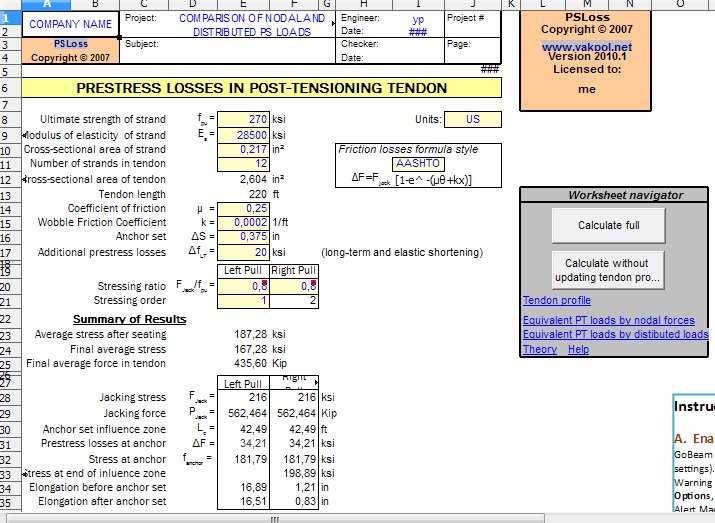

PSLoss screenshot
Software :PSLoss
Developer :Yakov Polyakov
Version :2010.1
Last Update :15 December 2010
Platform:Spreadsheet
File Size :0.78 MB
License :Trial
Downloads :UserDownloads:124
PSLoss Description

The spreadsheet calculates elongation, friction and anchor set losses of prestressing tendon. The tendon can have a three-dimensional profile and may be jacked from one or both ends. PSLoss assists in the development of a vertical tendon profile for multi-span beams. The spreadsheet provides dynamic graphics for easy visualization and verification of input data and computed results. It has been used successfully for a variety of bridge projects and has accurately checked post-tensioning shop drawings.

Features:

  • pulling from one or both ends
  • three-dimensional tendon profile
  • computes equivalent post-tensioning loads on the beam
  • SI and US units
  • international design codes
* PSLoss download link provides trial version of the software.
* Keywords: elongation, friction, prestressing tendon, tendon profile, tendon, prestressing
