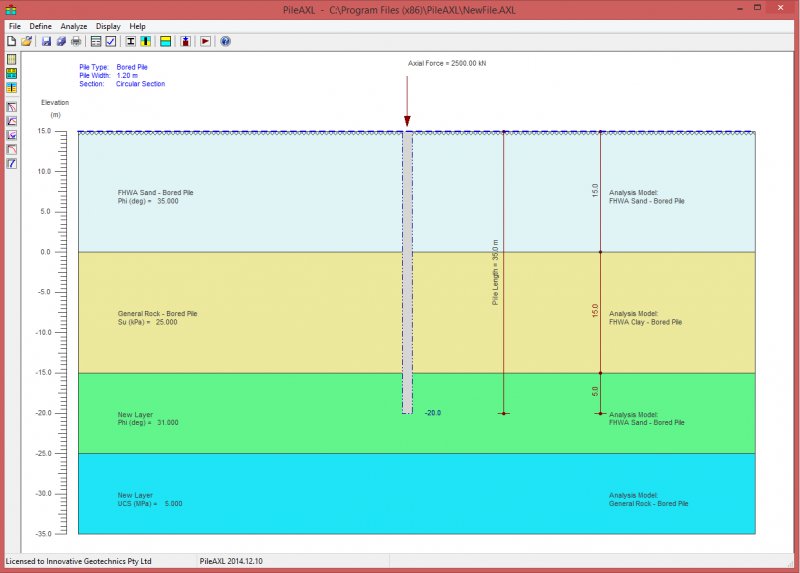

PileAXL screenshot
Software :PileAXL
Version :2014
Last Update :3 May 2015
Platform:Windows
File Size :11.92 MB
License :Demo
Downloads :UserDownloads:240
PileAXL Description

PileAXL is a program that analyzes the behaviour of single piles under axial loading applied at the pile head (compression or tension) for both onshore and offshore engineering problems. Both bored piles and driven piles can be analysed by the program. The program computes the ultimate and factored pile capacities for a range of pile lengths together with the short-term pile settlement curve for a specific pile length.

PileAXL is a quick and simple tool to determine the pile capacity and settlement under the axial load. It is an useful tool for pile design and analysis by both structural and geotechnical engineers. Some of the features and benefits are as follows:

  1. Standard window-style dialogs, push buttons, drop menus, list boxes, EXCEL-like data grid cells, slide bars, radio buttons, check boxes and toolbars can be accessed in the program;
  2. Analysis methods for driven piles include (1) American Petroleum Institute Method (API RP2A), (2) U.S. Army Corps of Engineers Method (USACE), (3) Imperial College Pile Method (ICP) and (4) User-defined method;
  3. Analysis methods for bored piles or drilled shafts include (1) FHWA Clay, (2) FHWA Sand, (3) FHWA Gravelly Sand, (4) FHWA Gravels and (5) General rock;
  4. Ultimate end bearing resistance within the layered soils is determined by Meyerhof (1976)’s approach with considering the influence effects of upper and lower soil layers.
  5. Automatic generation of nonlinear t-z curves and q-w curves for various soil types such as cohesive soils, cohesionless soils and rocks according to the pile installation type.
  6. Different pile cross section types such as circular section, rectangular section, steel H-section, steel pipe section, octagonal section and user-defined section can be selected by the user. Plugged and unplugged options are available to the steel H-section and steel pipe section;
  7. Resistance factors can be specified by the users for ultimate shaft resistance (compression), ultimate shaft resistance (tension) and ultimate end bearing resistance for the design to be consistent with the current widely-used limit state design concept. Additional reduction factor can be applied to the internal shaft resistance of the unplugged steel pipe section to consider the effects of driving disturbance;
  8. Detailed analysis results are presented in EXCEL-like format and can be easily selected and copied into the third-party program such as EXCEL for further processing;
  9. An interactive graphical interface for pile and soil layer geometry input is provided. Important changes in the input data such as pile length, the number of soil layers, soil layer name, soil layer thickness, soil layer colour, analysis model type, water table position, certain soil parameters and pile loading will be automatically updated in the main graph. It is very convenient for the user to visually view the input change.
* PileAXL download link provides demo version of the software.
* Keywords: single pile, axial loading, pile head, offshore engineering, bored pile, driven pile, pile analysis, pile capacity, pile length, pile settlement, american petroleum institute method, usace, icp, fhwa, t-z curve, q-w curve
