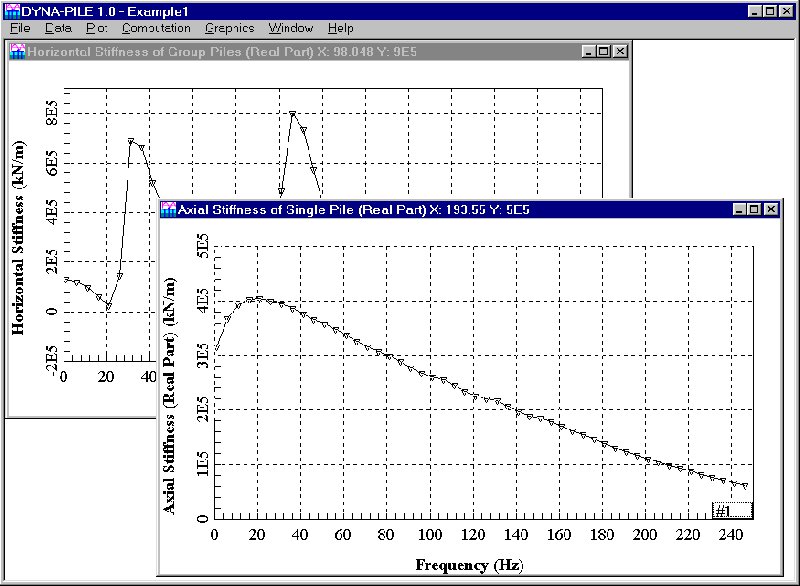

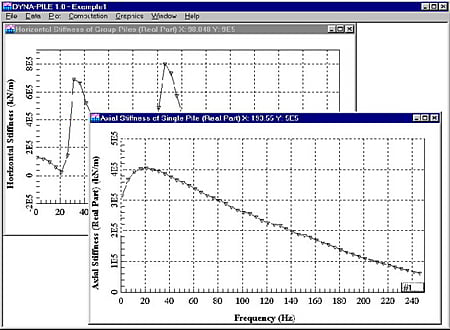

DynaPile screenshot
Software :DynaPile
Developer :Ensoft
Version :2.0
Last Update :7 December 2007
Platform:Windows
File Size :5.22 MB
License :Demo
Downloads :UserDownloads:239
DynaPile Description

Program DynaPile was developed to compute the dynamic stiffness of single piles or pile groups. The piles can be either floating piles or end-bearing piles. Vertical, horizontal and rocking dynamic stiffnesses will be generated by the program. The program will also generate the group reduction factors for pile groups under small excitation conditions. The method of computation is based on the consistent boundary-matrix method proposed by Blaney, Kausel and Roesset (1976).

Pile foundations were analyzed for some time neglecting interaction effects betwwen the piles through the soil and enforcing only compatibility of displacements at their heads under the assumption of a rigid mat. The dynamic model, which takes into account the whole soil medium in the analysis, can conveniently provide information about group-reduction factors of pile foundations if the soil properties are adjusted to account for the effective level of strains.

Input parameters consist of the structural and dynamic properties of the pile, geometric configuration of the pile groups, soil properties, definition of excitation forces (in frequencies), and definition of superstructures masses.

* DynaPile download link provides demo version of the software.
* Keywords: dynamic stiffness, single pile, pile group, floating pile, end-bearing pile, blaney, kausel, roesset, pile foundation, head displacement, soil properties, excitation forces
